Electric tow tractor CTX40/70
Home > Our Product Range > Electric tow tractor CTX40/70

THE CLARK HPT Premium – Hand pallet truck for professionals

Due to their great ergonomics, performance and safety, these extremely compact tow tractors of the CTX series are also suitable for heavy duty work such as goods distribution, production and warehousing.

Capacity: 7,000 kg

A workstation with excellent ergonomics and low entry for the driver are only two examples of the many benefits this series has to offer.

product load

Max 7,000kg

product speed

Max 17 km/ h

product engine

6 kW

product battery

max. 375 Ah/ 5hr

100% AC system for powerful performance.

  • Excellent tractive power and powerful performance due to heavy duty AC traction motors
  • The drive system gives low noise optimum control in all operations

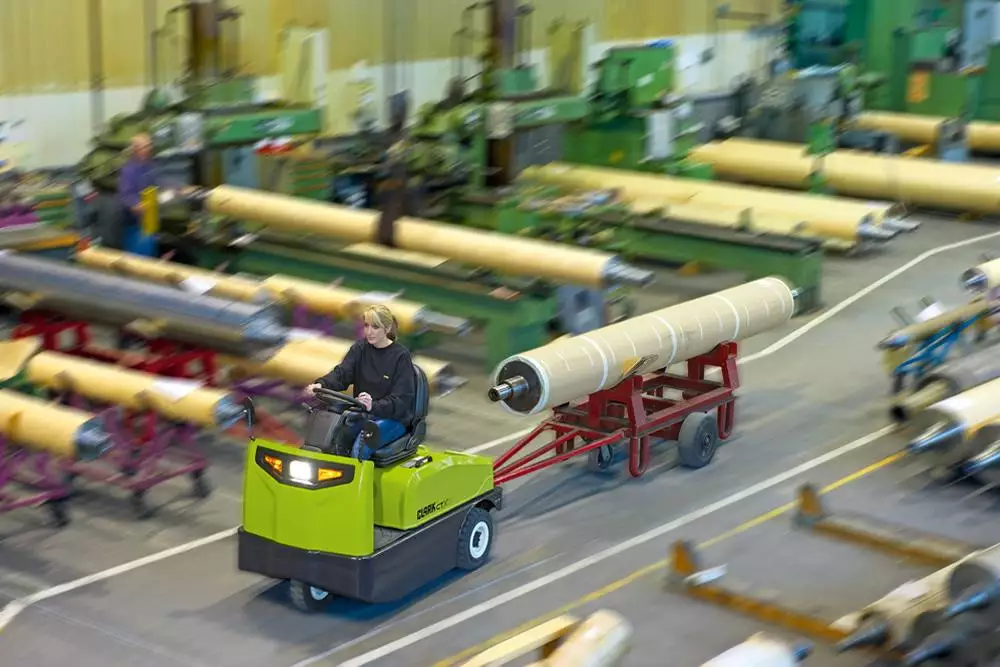

ctx70 einsatz halle 08 a3 print cor1

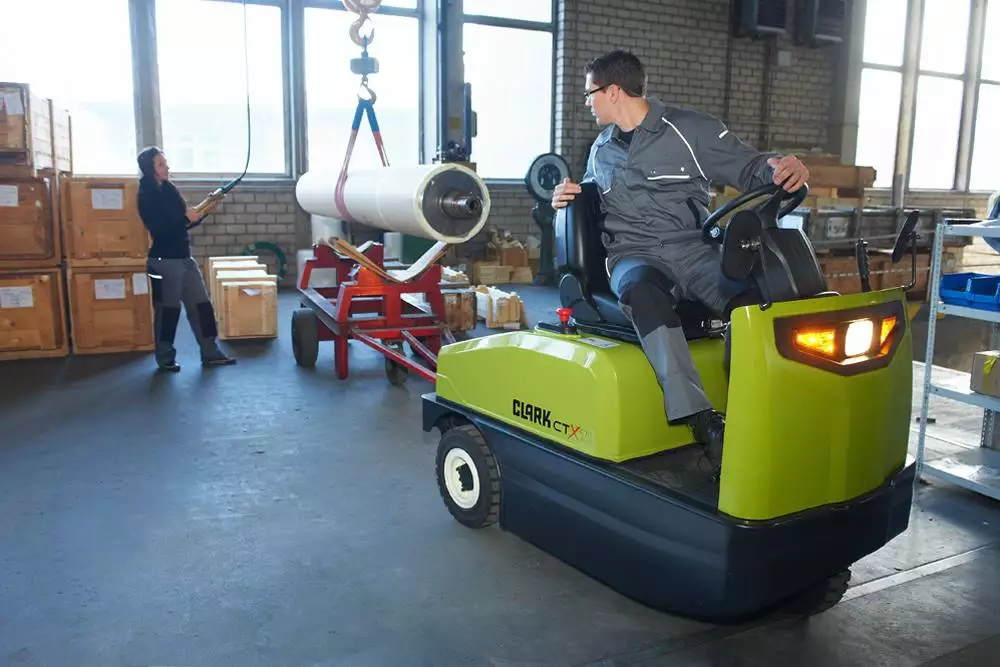

ctx70 einsatz verladung 01 final

Regenerative braking

Three types of regenerative braking:



  • When releasing the accelerator
  • When changing the travel direction
  • When activating the service brake

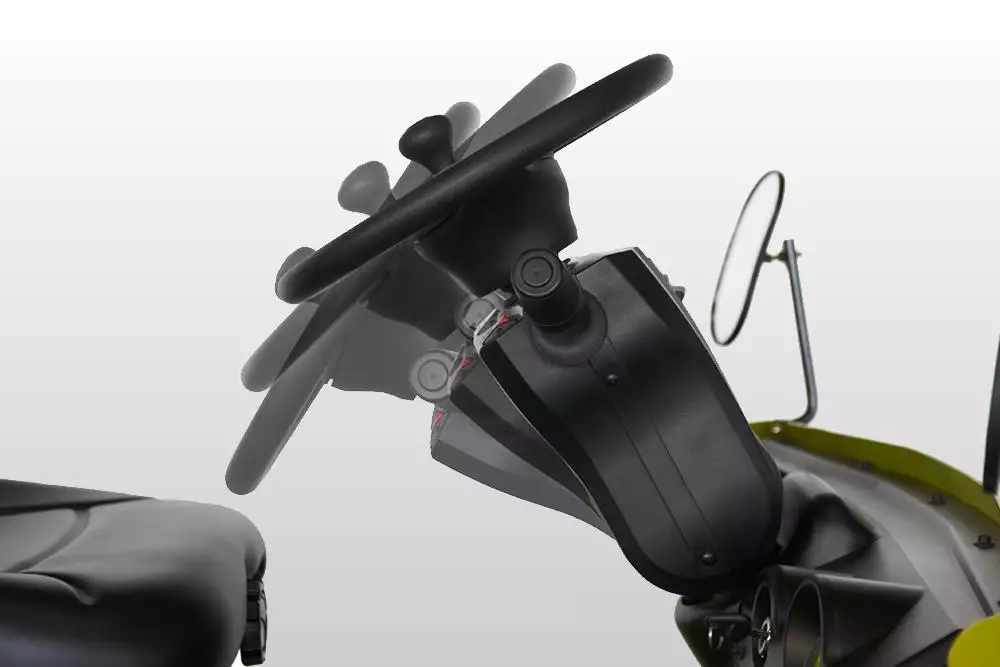

Steering system

  • Mechanical system with steering ratio not dependent on electrical support
  • Shorter downtimes due to easy maintenance and reliable components
  • Comfortable and safe driving

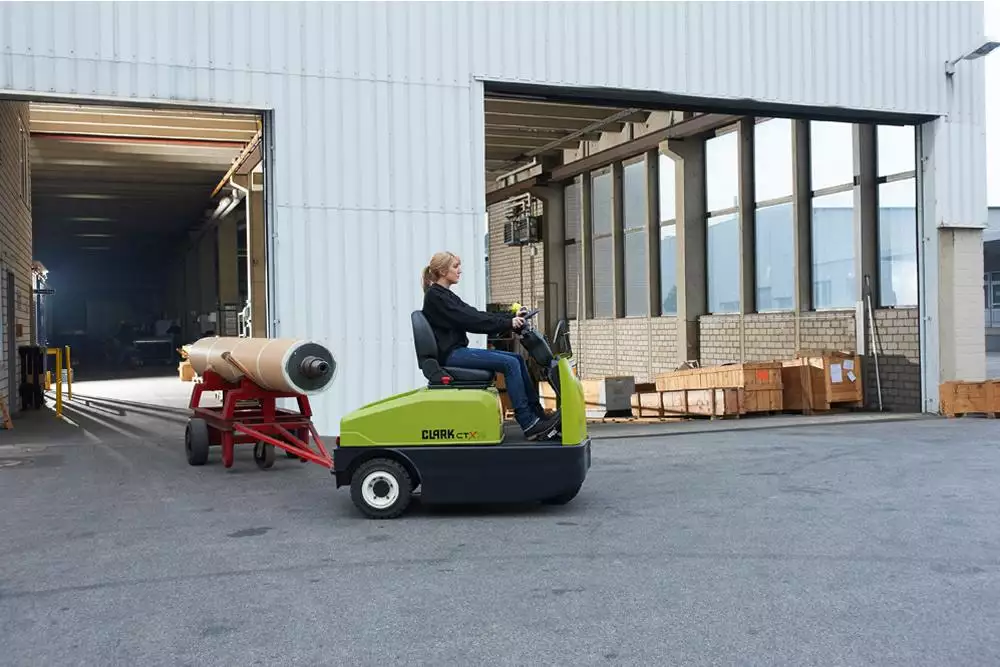

ctx70 einsatz aussen 12 final
ctx70 fahrerplatz 04 final kopie

Driver’s compartment

  • Thick, step-resistant floor mat
  • Damping of vibrations and noise muffling
  • Car pedal layout
  • The direction change is made by convenient lever on the left of the steering wheel
  • Large leg space
  • Entering and exiting the vehicle is possible on both sides

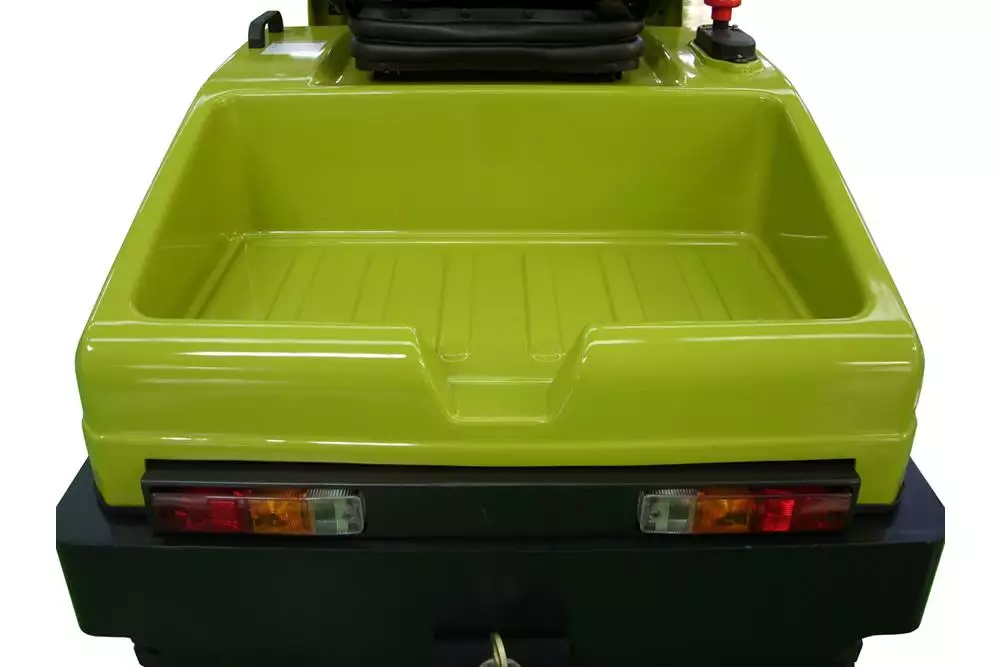

Spacious storage compartment

  • A spacious storage compartment (770 mm x 420 mm) behind the driver’s compartment makes it possible to move additional loads of up to 150 kg
  • Additional storage compartments are located in the drivers compartment and on the right next to the parking brake

    Fully programmable and easy to service

    • BUp to 20 performance parameters are programmable separately: Acceleration, crawl speed, regenerative braking, and many more settings can be adjusted to precisely match the CTX’s performance to application requirements



    • The wide opening hood allows easy access for routine maintenance and servicing



    Configuration options well worth it:

    The CLARK CTX40/70 was designed to meet the highest standards. A number of options, such as a overhead warning light, a driver’s cab or coupling/decoupling fixture ensure that the vehicle exactly meets the requirement profile of the application.
